- 470 kg platform payload The autonomous platform carries loads of up to 470 kg, placing the HC-X6-B in the upper-middle of the SIASUN HC-X mobile cobot range.
- Wide-body 1250 × 700 × 800 mm chassis The widest vehicle in the HC-X family, engineered for stable travel with a purpose-designed chassis wheel system.
- ±0.3 mm overall accuracy The integrated platform-and-arm system delivers a maximum overall accuracy of ±0.3 mm for precision handling, assembly, and processing tasks.
- SLAM & QR-code navigation Dual-mode navigation combines SLAM mapping with QR-code guidance for reliable, repeatable positioning at every workstation.
- Real-time ground and airspace safety Comprehensive safety protection monitors the floor and surrounding space in real time, enabling safe human-robot collaboration.
- Charging built for 24/7 schedules Contact-based, wireless, and automatic charging methods support short-term, real-time, and continuous round-the-clock operation.
Description

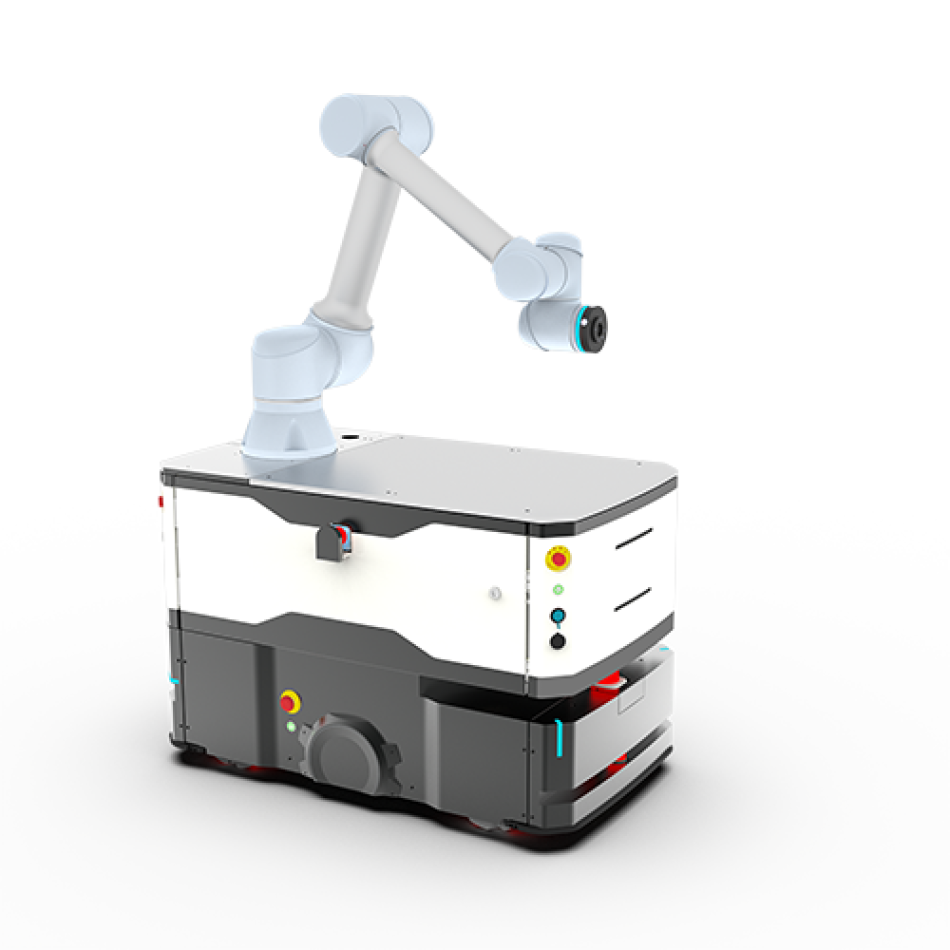

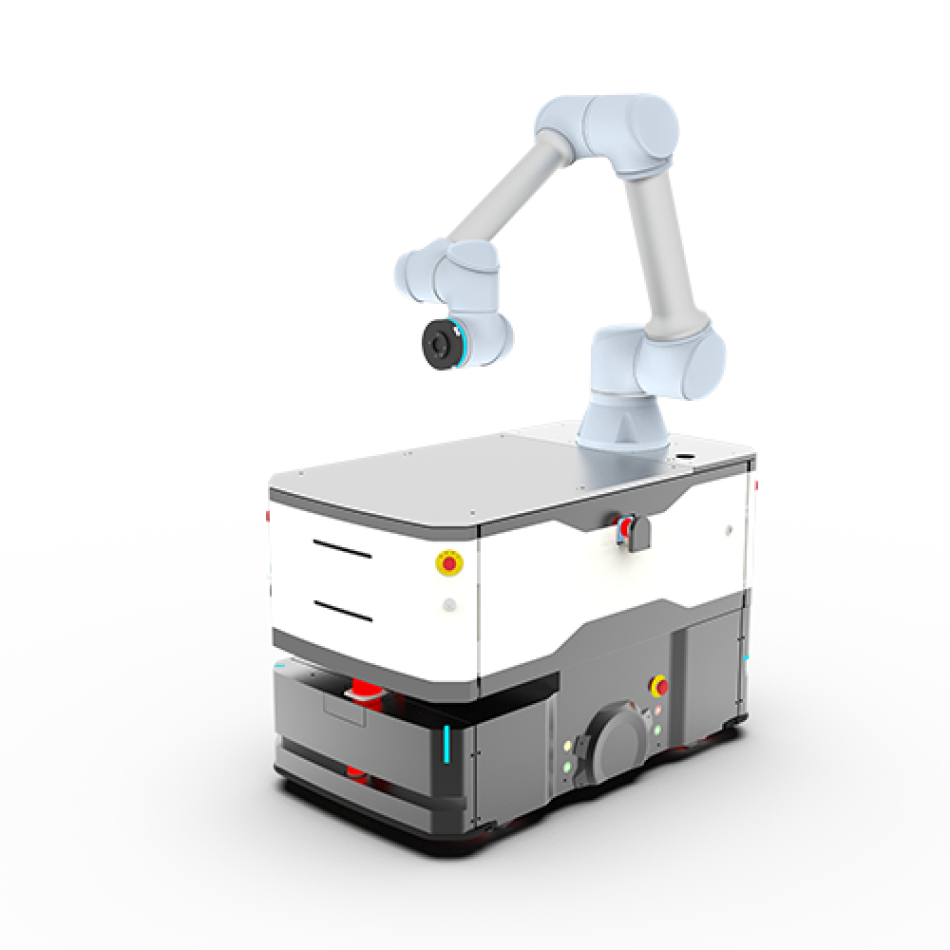

The SIASUN HC-X6-B is a mobile collaborative robot in the DUCO family that places a collaborative robot arm on SIASUN's self-developed autonomous mobile platform, giving it a 470 kg platform load on a 1250 × 700 × 800 mm chassis — the widest vehicle in the HC-X range. The complete system holds a maximum overall accuracy of ±0.3 mm and navigates using a combination of SLAM mapping and QR-code guidance. Like its siblings, it can be equipped with SIASUN-developed vision systems, grippers, and other execution units, allowing the same vehicle to be reconfigured for material handling, assembly, inspection, or precision processing. Comprehensive safety protection covers both the ground plane and the surrounding airspace in real time for safe human-robot collaboration, supported by a chassis wheel system purpose-designed for stability under load.
On the factory floor the HC-X6-B moves between stations to load and unload equipment and to carry out inspection work, bringing robot capability to points a fixed installation cannot serve. SIASUN's case studies for the platform span automotive manufacturing — engine spark-plug assembly and screw-tightening, welding and gluing of body parts, NVH detection for electric drives, automatic nail-blowing and tightening, palletising packages, release-agent spraying for steering-wheel foam parts, battery-pack bolt tightening for new-energy vehicles, and container welding. An integrated teaching pendant lets engineers interact with and debug the mobile platform and the arm from one screen, speeding up deployment, while multiple interaction and communication methods integrate the robot with existing plant systems. Contact-based, wireless, and automatic charging options sustain short-term, real-time, or continuous 24/7 operation.
Fonctionnalités
Spécifications
| Brand | SIASUN |
|---|---|
| Model | HC-X6-B |
| Type | Mobile collaborative robot (mobile platform + collaborative arm) |
| Platform Load | 470 kg |
| Max Overall Accuracy | ±0.3 mm |
| Navigation Method | SLAM & QR code |
| Vehicle Dimensions | 1250 × 700 × 800 mm |
| Charging Options | Contact-based, wireless, and automatic |
| Safety | Real-time ground and airspace protection |
| Control Interface | Integrated teaching pendant (single screen for platform and arm) |
| End-Effector Options | Vision systems, grippers, and other execution units |
Secteurs
Questions fréquentes
The HC-X6-B is a mobile collaborative robot from SIASUN's DUCO series. It combines a 470 kg autonomous mobile platform with a collaborative robot arm and can be fitted with vision systems, grippers, and other execution units to perform material handling, assembly, inspection, and precision-processing tasks.
Its main roles are loading and unloading and mobile inspection. SIASUN case studies for the platform include engine spark-plug assembly and tightening, welding and gluing of automotive body parts, NVH detection for electric drives, automatic nail-blowing and tightening, palletising, release-agent spraying, battery-pack bolt tightening for new-energy vehicles, and container welding.
The HC-X models share the same DUCO architecture, ±0.3 mm maximum overall accuracy, and SLAM & QR-code navigation, differing chiefly in payload and chassis size. The HC-X6-B carries 470 kg on the widest vehicle in the range at 1250 × 700 × 800 mm, sitting between the 350 kg HC-X3-B and the 670-1000 kg HC-X2 variants. Unlike a fixed arm such as the SIASUN V-Series industrial robot, it drives itself between workstations.
Yes, Robotix Market ships the SIASUN HC-X6-B worldwide. The robot is covered by the manufacturer's warranty as provided by SIASUN.
Pricing is available on request. Contact the Robotix Market team through the website's quote or inquiry form and we will provide pricing, availability, configuration options, and shipping details.
