- 3200 kg load capacity Carries front and rear suspension modules and chassis assemblies weighing up to 3200 kg, covering the heavy subassemblies involved in automotive final assembly.
- 1000 mm lifting stroke, adjustable dual scissor lifts The dual-lift scissor structure delivers a 1000 mm stroke with lift spacing adjustable between 2450 and 3170 mm to suit different vehicle platforms on the same line.
- Floating platform for precision alignment Lift platform float of X ±125 mm, Y ±50 mm, and ±2° of angle gives the compliance required for high-precision alignment of heavy assemblies during installation.
- ±10 mm / ±1° navigation accuracy Autonomous navigation repeatably positions the robot within ±10 mm and ±1°, supporting accurate station-to-station assembly workflows.
- Dual-steering-wheel drive The dual-steering-wheel drive system provides controlled, flexible movement along production routes in space-constrained assembly environments.
- Manned step platform for mixed-model lines An integrated manned step platform supports operator involvement in the assembly process, with the robot positioned as ideal for mixed-model automotive production.
Description

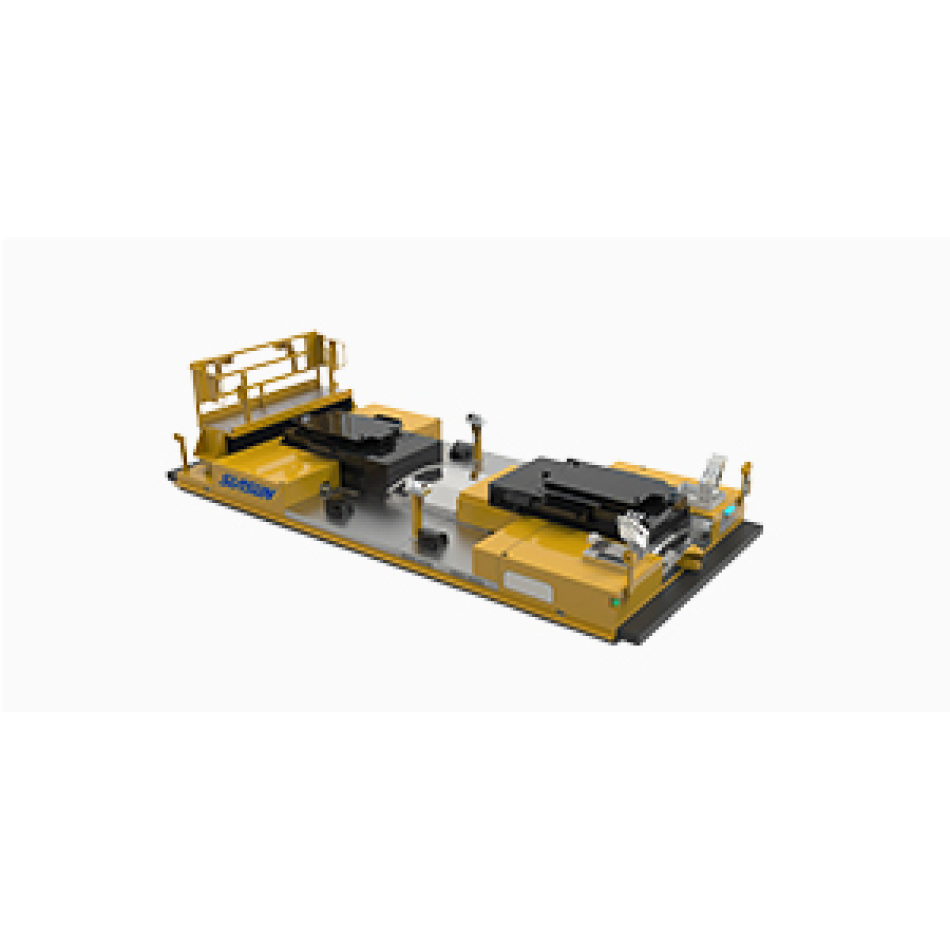

The SIASUN Triple-Lift Automotive Assembly Mobile Robot is a heavy-payload mobile platform engineered for high-precision front and rear suspension and chassis assembly in automotive production. It carries loads up to 3200 kg and provides a 1000 mm lifting stroke through a dual scissor-lift structure with spacing adjustable from 2450 to 3170 mm, allowing the platform to adapt to different vehicle architectures. Navigation accuracy of ±10 mm / ±1° on a dual-steering-wheel drive system delivers the repeatable positioning that assembly operations demand, while a floating lift platform — X ±125 mm, Y ±50 mm, angle ±2° — provides the compliance needed to align heavy assemblies accurately during the assembly process. A manned step platform is integrated into the design, and the robot is positioned as ideal for mixed-model production lines.
In application, the robot supports flexible automation across modern smart factories, production logistics, and process-driven material handling — anywhere repeatable transport, accurate positioning, and safe autonomous operation are required. Its combination of high load capacity, adjustable dual-lift mechanism, and precision navigation makes it particularly suited to automotive assembly lines running multiple vehicle models over the same route, where fixed conveyance would constrain flexibility. The product is configured for quotation-based purchasing, with final configuration and integration requirements confirmed against the specific production line before ordering.
Fonctionnalités
Spécifications
| Brand | SIASUN |
|---|---|
| Model | Triple-Lift Automotive Assembly Mobile Robot |
| Load Capacity | 3200 kg |
| Lifting Stroke | 1000 mm |
| Lifting Mechanism | Dual lift, scissor structure, adjustable spacing 2450–3170 mm |
| Lift Platform Float | X ±125 mm; Y ±50 mm; Angle ±2° |
| Navigation Accuracy | ±10 mm / ±1° |
| Drive System | Dual-steering-wheel drive |
| Platform | Manned step platform |
Secteurs
Questions fréquentes
It is a heavy-payload autonomous mobile robot designed for automotive assembly — specifically high-precision front and rear suspension and chassis assembly. It transports and lifts assemblies of up to 3200 kg into position on the production line, and its adjustable lift spacing makes it suitable for mixed-model lines running different vehicle platforms.
The robot combines ±10 mm / ±1° navigation accuracy with a floating lift platform that allows X ±125 mm, Y ±50 mm, and ±2° of angular compliance. This lets heavy assemblies be aligned accurately during installation rather than relying on the drive system alone, which is essential when mating suspension and chassis components.
The robot provides a 1000 mm lifting stroke via a dual-lift scissor structure with spacing adjustable between 2450 mm and 3170 mm, and carries loads up to 3200 kg. A manned step platform is integrated, supporting operator involvement during assembly operations.
The SIASUN V-Series is a stationary industrial robot for manufacturing tasks at a fixed workstation, whereas the Triple-Lift Automotive Assembly Mobile Robot is an autonomous mobile platform: it drives assemblies along the production line, positions itself with ±10 mm accuracy, and lifts up to 3200 kg into place — combining material transport and assembly lifting in one unit.
This product is configured for quotation-based purchasing through Robotix Market. Availability, final configuration, and integration requirements are confirmed against your production line before ordering. The robot is covered by SIASUN's manufacturer warranty; installation and on-site services are not included.
